SQL JOINs Explained with Venn Diagrams

A SQL JOIN is a method to retrieve data from two or more database tables. This article presents a basic overview of what data from a particular SQL join will look like. A popular way of understanding SQL joins is to visualize them using Venn diagrams, so each example have corresponding Venn diagram, appropriate SELECT statement and the result table.

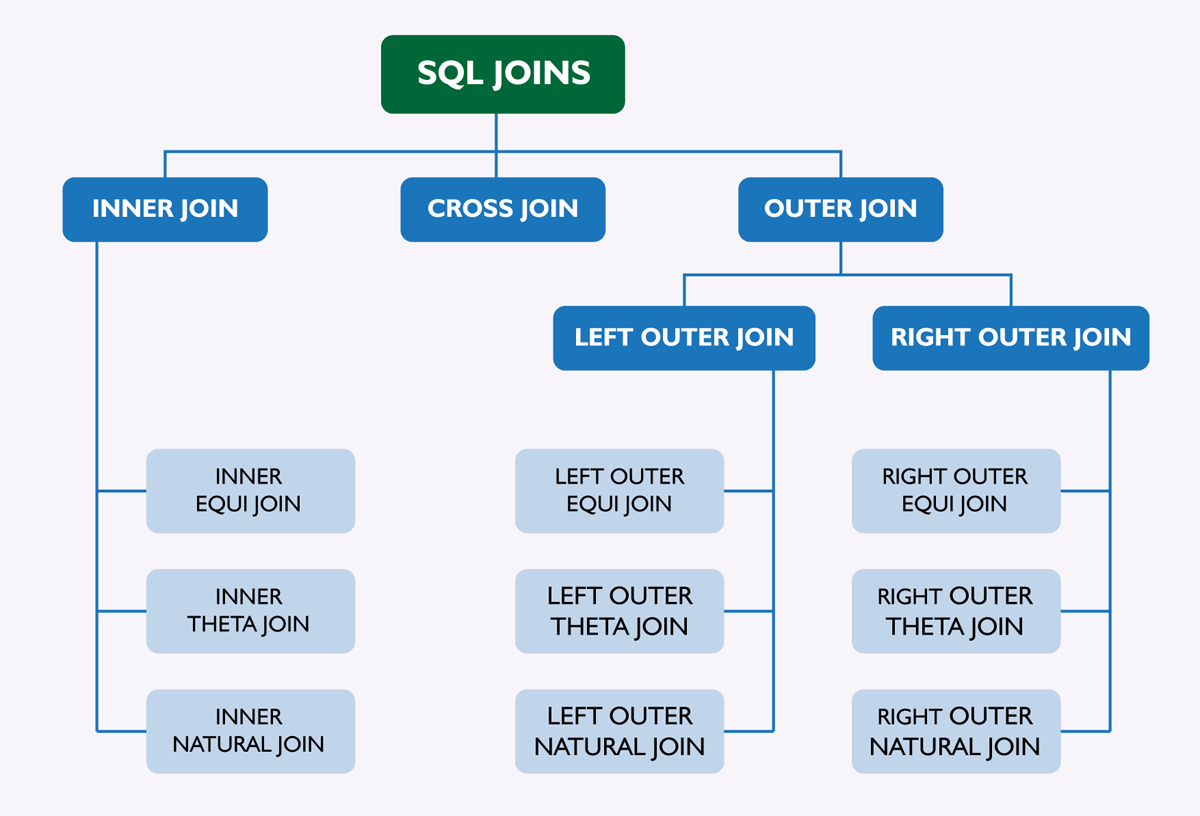

There are a few major kinds of SQL joins:

• INNER JOIN
• OUTER [LEFT | RIGHT | FULL] JOIN
• NATURAL JOIN
• CROSS JOIN

We distinguish the implementation of these joins based on the join operators:

• equi and
• theta, which will be described later.

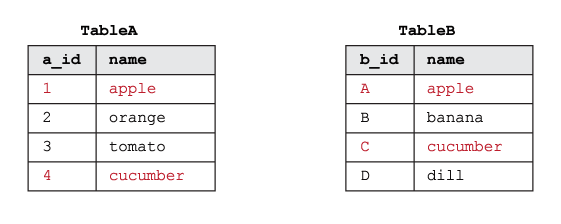

For the purposes of this article, let's discuss joins using a simple example. Assume that we have two basic tables, TableA and TableB, which are filled with some example data. Since we'll be joining tables on name column, we distinguish the rows of the same name by highlighting them red.

In the following sections, we'll look at what happens to this data when different types of joins are implemented.

CROSS JOIN

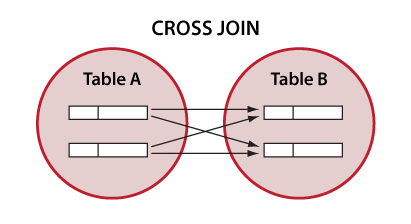

A CROSS JOIN is a Cartesian product of TableA and TableB. Every row from TableA is matched with every row from TableB; that's why a CROSS JOIN doesn't make sense in most situations.

SELECT *
FROM tableA
CROSS JOIN tableB;

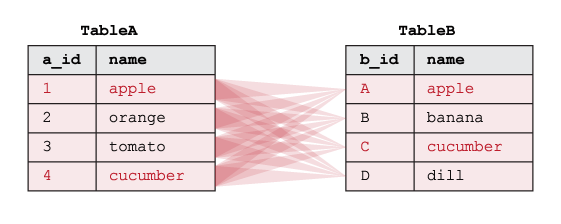

TableA and TableB contain 4 rows. The resulting table will have 4 * 4 = 16 rows and will look as follows:

INNER JOIN

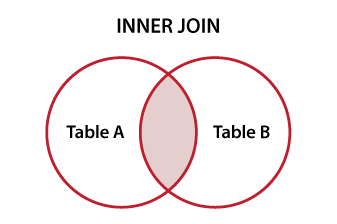

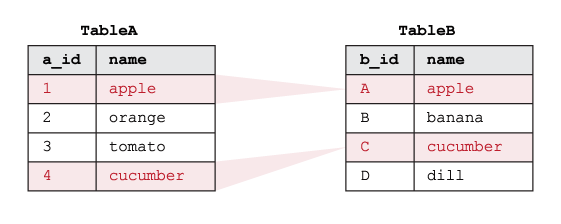

An INNER JOIN merges ONLY the matching rows in BOTH tables. A JOIN without any other JOIN keywords (like INNER, OUTER, LEFT, etc) is an INNER JOIN. Results are found in the overlapping area.


SELECT *
FROM tableA
INNER JOIN tableB
  ON tableA.name = tableB.name

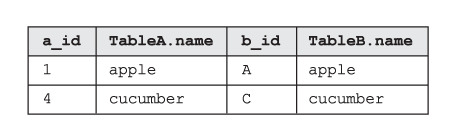

The resulting table will be as follows:

OUTER JOINS

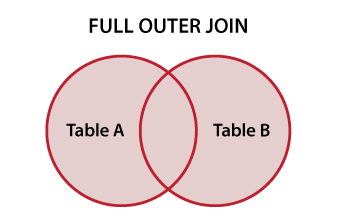

FULL OUTER JOIN returns matched and unmatched rows from both tables (it's an union of both). If there is no match, the missing side will contain null.


SELECT *
FROM TableA
FULL OUTER JOIN TableB
  ON TableA.name = TableB.name;

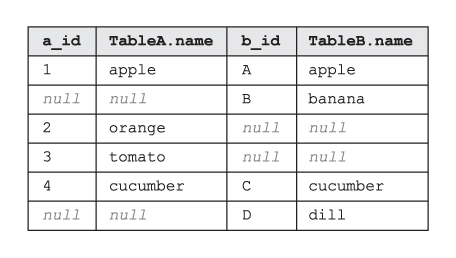

The resulting table will be as follows:

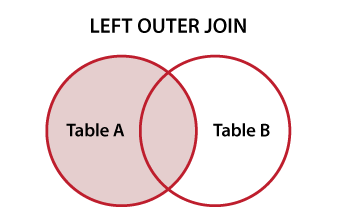

A LEFT OUTER JOIN returns all rows from the left table (TableA) with the matching rows from the right table (TableB) or null – if there is no match in the right table.

The results can be found in the entire left circle:

SELECT *
FROM TableA
LEFT OUTER JOIN TableB
  ON tableA.name = tableB.name;

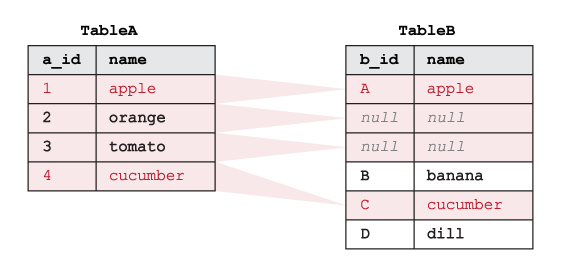

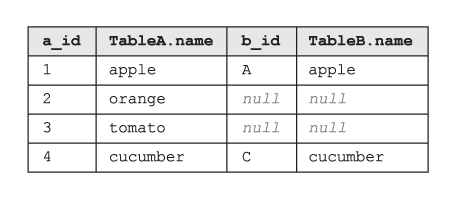

The resulting table will be as follows:

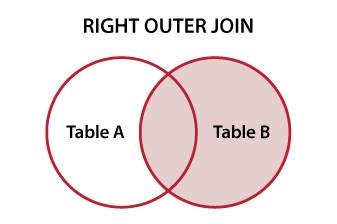

A RIGHT OUTER JOIN returns all rows from the right table (TableB) with the matching rows from the left table (TableA) or null – if there is no match in the left table.

The results can be found in the entire right circle:

SELECT *
FROM tableA
RIGHT OUTER JOIN tableB
  ON tableA.name = tableB.name

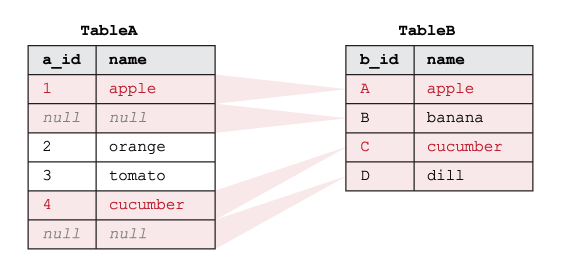

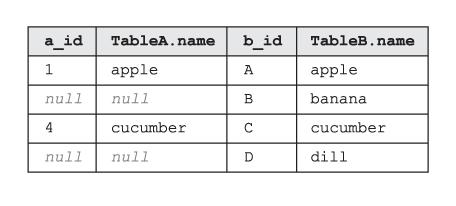

The resulting table will be as follows:

Joins based on operators

Equi-join implementation

This JOIN is made by using the equality-operator (=) to compare values of the PrimaryKey of one table and the Foreign Key values of another table.

SELECT *
FROM TableA
INNER/OUTER JOIN TableB
  ON TableA.PK =TableB.Fk;

Theta-join implementation (non-equi)

This is the same as the equi JOIN but it allows all other operators like >, &lt, >= etc.

SELECT *
FROM TableA
INNER/OUTER JOIN TableB
  ON tableA.Pk <= tableB.Fk;

Self-join implementation

This type of JOIN is usually used in case of a unary relationship type, where a table is combined with itself.

SELECT *
FROM TableA A1
JOIN TableA A2
  ON A1.Pk = A2.Fk;

NATURAL JOIN

A NATURAL join is a type of EQUI join. There is no need to use an ON clause. Columns with the same name in associated tables appear once only.

SELECT *
FROM tableA
NATURAL JOIN tableB

By manipulating keywords we can exclude specific data.

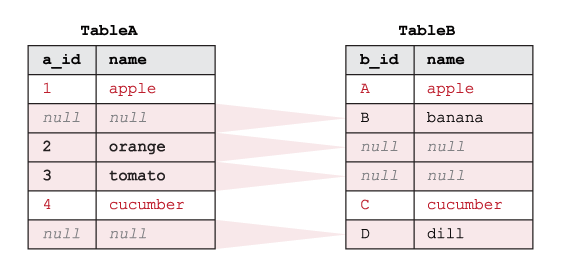

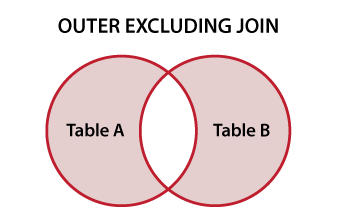

An OUTER EXCLUDING JOIN returns all of the records in TableA and all of the records in TableB that don't match.

SELECT *
FROM tableA
FULL OUTER JOIN tableB
  ON tableA.name = tableB.name
WHERE tableA.name IS NULL
  OR tableB.name IS NULL

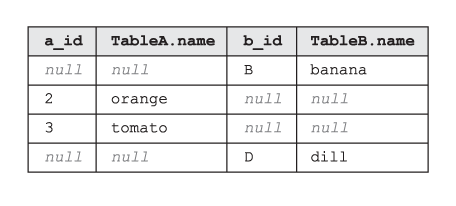

The resulting table will be as follows:

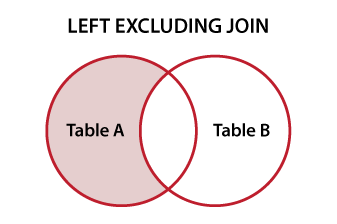

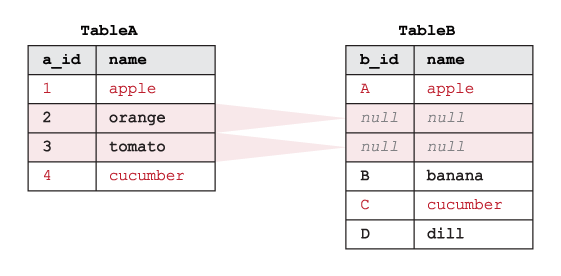

A LEFT EXCLUDING JOIN returns all of the records in TableA that don't match any record in TableB.

SELECT *
FROM tableA
LEFT JOIN tableB
  ON tableA.name = tableB.name
WHERE tableB.name IS NULL

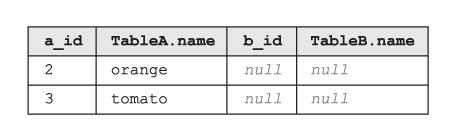

The resulting table will be as follows:

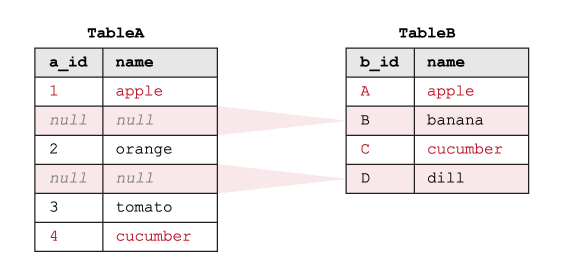

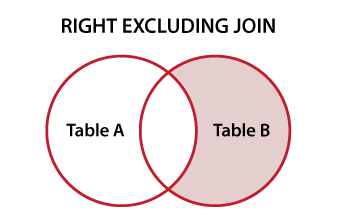

A RIGHT EXCLUDING JOIN returns all of the records in TableB that don't match any records in TableA.

SELECT *
FROM tableA
RIGHT JOIN tableB
  ON tableA.name = tableB.name
WHERE tableA.name IS NULL

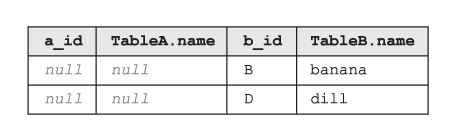

The resulting table will be as follows:
